Extraction tank (extraction tank)
Still deciding? Get samples first, Contact US !
View similar products
Tag list
- DESCRIPTION
-

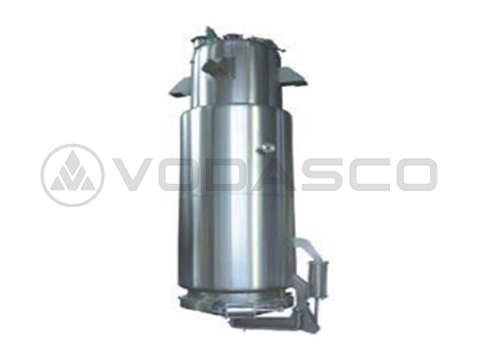

Overview: In brief, the extraction equipment is used to extract the essence of traditional Chinese medicine. The components of traditional Chinese medicine extraction equipment can be divided into extraction tanks, demisters, condensers, coolers, oil-water separators, filters, conveying pumps, pneumatic control systems for slag gates, mixing control systems, etc. This equipment can be designed and manufactured according to different process requirements or control requirements of users. It is widely used in industries such as traditional Chinese medicine, plants, food, biology, and light industry for atmospheric pressure, pressure, pressure reduction, extraction, temperature leaching, hot reflux, forced circulation, percolation, separation of aromatic oils, and recovery of organic solvents. The main shapes include straight tube, straight cone, and inverted cone. Please refer to the attached diagram for details on the appearance.
Performance parameters:
Configuration: CIP universal cleaning ball, thermometer, pressure gauge, safety valve, explosion-proof test spotlight, quick opening feeding port, pneumatic slag discharge door, mixing device, etc;Extract tank performance parameter table
Parameter specifications
500L
1000L
3000L
6000L
8000L
Inner liner design pressure
Atmospheric pressure
Jacket design pressure
0.3MPa
Compressed air pressure MPa
0.6-0.7MPa
Diameter of feeding port
300mm
400mm
400mm
450mm
500mm
Feeding telescopic cylinder
The length depends on the on-site situation
Heating area of jacket ㎡
2.35
3.0
6.0
7.5
9.5
Diameter of slag discharge outlet mm
400
600
800
1000
1200
Condensation area ㎡
3-5
6-8
10-16
18-24
32---38
area of cooling surface ㎡
0.3
0.75
1
3
5.5
filter area ㎡
0.35
0.35
0.5
1
1
Conveyor pump t/h
1.5
3
7.5
15
15
stirring power kw
1.1
2.2
5.5
7.5
11
stirring speed r/min
0-85
Related equipment

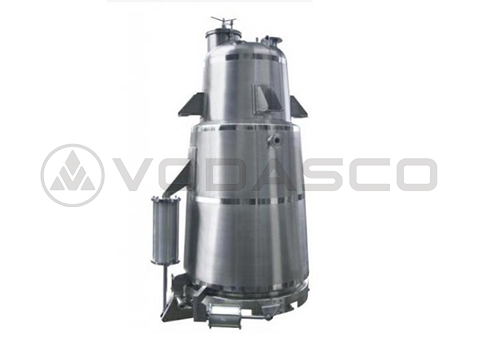

Cone shaped extraction tank
Straight tube extraction tank

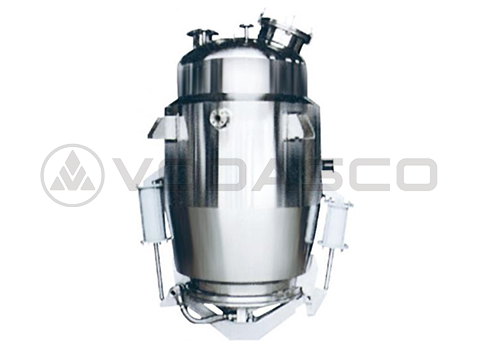

Inverted cone extraction tank

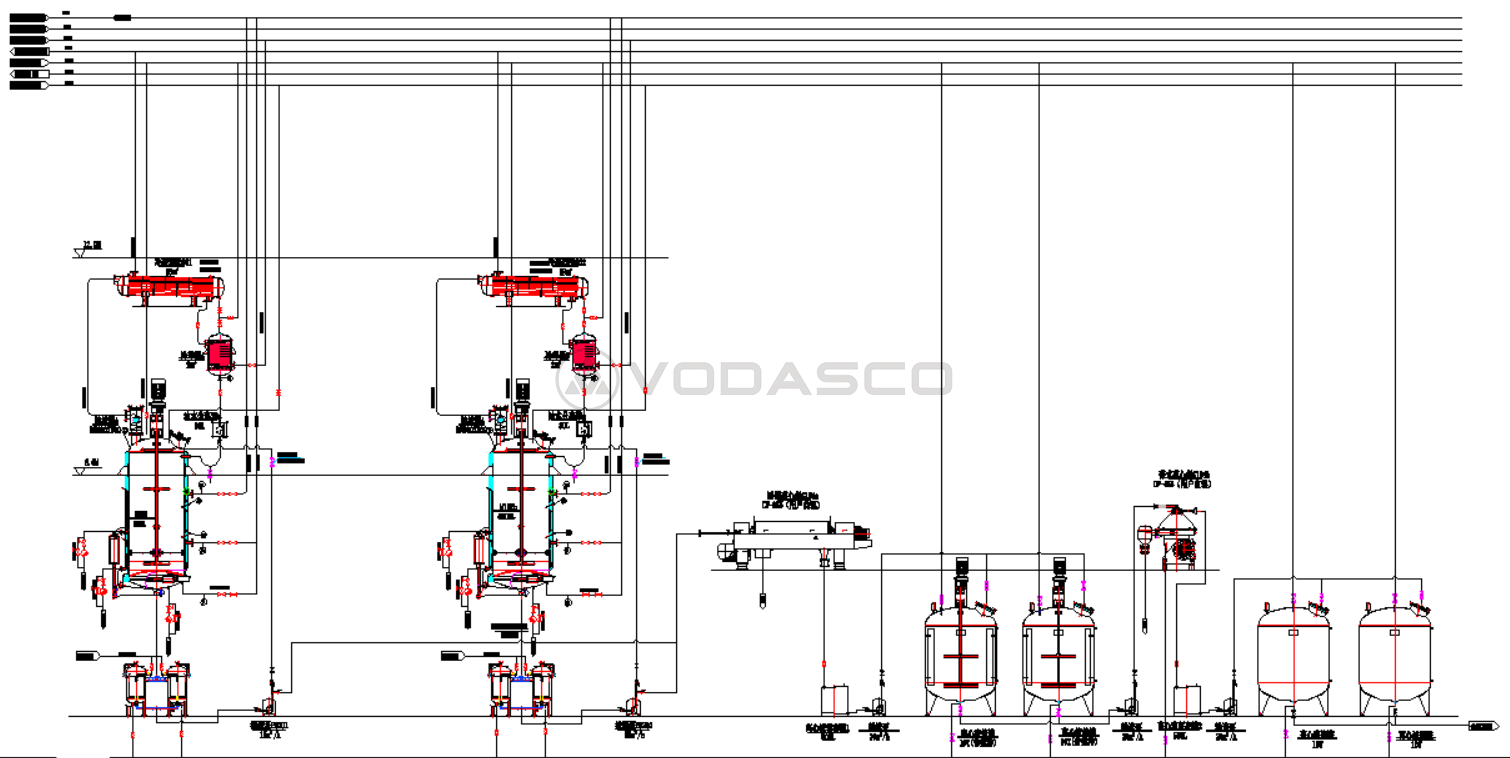

Process flow:
Extraction tank (extraction tank)
